Computer Applications [ARC 2723]
Project 1: Modelling of an Architectural Design
To create a 3D model using 3DS max or Rhino or both without materials and lighting.
 |
|---|
 |
 |
 |
 |
Solo Pezo by Pezo Von Ellrichshausen Architects
Located in Catalonia, Spain, this three storey high concrete structure is placed on the slope of the hill overlooking the beautiful surrounding valleys. Supported by a smaller structure, the design creates a sense of floating platform as seen in the first image.
The concrete facades were made using wooden form works, thus giving texture to the monochromatic material.
The first floor is illuminated by the sunlight refracting from the swimming pool while the third floor is very open with the swimming pool in the middle. The wall around the swimming pool is tiled to to provide shade from the mediterranean heat as that space is not roofed, allowing the sky to reflect on the water surface.
Work in Progress (WIP)
click on images to view descriptions
Computer Applications [ARC 2723]
Project 2: Still Rendering with Materials, Lights, Camera Views with Site Context
To create lighting, materials, camera views and site context for the model of the previous project.
Project 2a: Exterior rendering
 eye level viewFinal exterior rendering. Pathway to entrance of the building with pine trees at both sides. |  bird eye viewFinal exterior rendering. The design intention of the architect to create a floating slab can be seen through this perspective. |  side viewPrtscrn In realistic mode. |
|---|---|---|

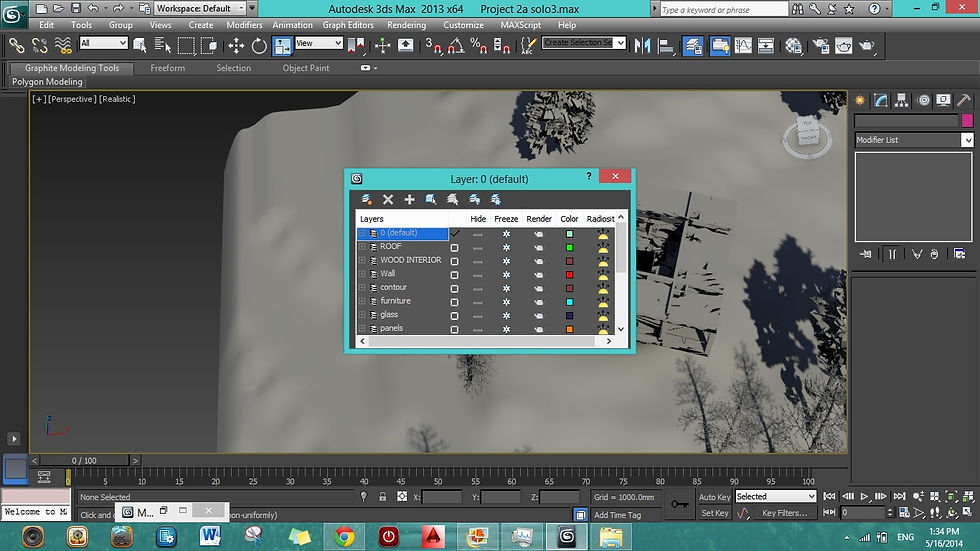

 concrete texturePrtscrn In realistic mode. |  top viewPrtscrn In realistic mode. |
Work in Progress (WIP)
click on images to view descriptions
Project 2b: Interior rendering
 Bedroom |  Living room |
|---|
Work in Progress (WIP)
click on images to view descriptions
Project 3: Animation
UFO themed animation.
Describing an alien travelling across the universe and found the building on Earth and decided to take a tour in it!
Enjoy!
Work in Progress (WIP)
click on images to view descriptions
